MyZio App 2.0 Redesign
MyZio® is the companion app for patients using the Zio ECG monitor, offering features like digital symptom tracking, educational resources, and timely reminders throughout the monitoring process.
Overview
MyZio 2.0 was a company-wide redesign of a patient-facing cardiac monitoring app, where usability, accessibility, and trust directly impacted clinical outcomes.
The existing experience was clinically accurate but difficult for patients, especially older users, leading to incomplete symptom data, increased support calls, and lower patient compliance.
I co-led this project with one other product designer, and owned redesigning the highest-impact patient flows — symptom logging, device management (under profile & settings), and help & education — balancing clinical requirements, accessibility standards, and real-world patient behavior.
Impact
Simple press of the monitor to update Zio when having any symptoms or unwell feeling.
App Store ReviewSo much easier than carrying a booklet around to log my symptoms! This app has been great, very easy to use.
App Store ReviewThe interface with the app couldn't be easier.
App Store ReviewI'm so thankful for this app.. my arrhythmia happens so often that logging every time I have an irregularity is quite inconvenient but the app makes the process so much easier, faster and more efficient.
App Store ReviewEasy to navigate this app. I really appreciate this convenient tool instead of trying to remember to take the 'booklet' with you...Senior approval!!
App Store ReviewThe app makes the process so much easier, faster and more efficient.
App Store ReviewMyZio 2.0 promotional video showcasing the redesigned symptom logging experience.
Background & Challenge
The MyZio app (v1.5) felt cold and clinical — not exactly what you want when you're a patient managing heart health. For older adults (the median age of an iRhythm patient is 62), the app created more stress than support. Symptom logging was confusing, the interface didn't meet accessibility standards, and the whole experience felt like it was designed for doctors, not the people actually wearing the device. MyZio 2.0 was our chance to flip that. We reimagined the app from the ground up, focusing on what patients actually needed: clear, simple tools that made symptom tracking effortless and an interface that worked for everyone — including those with vision challenges or lower tech comfort.

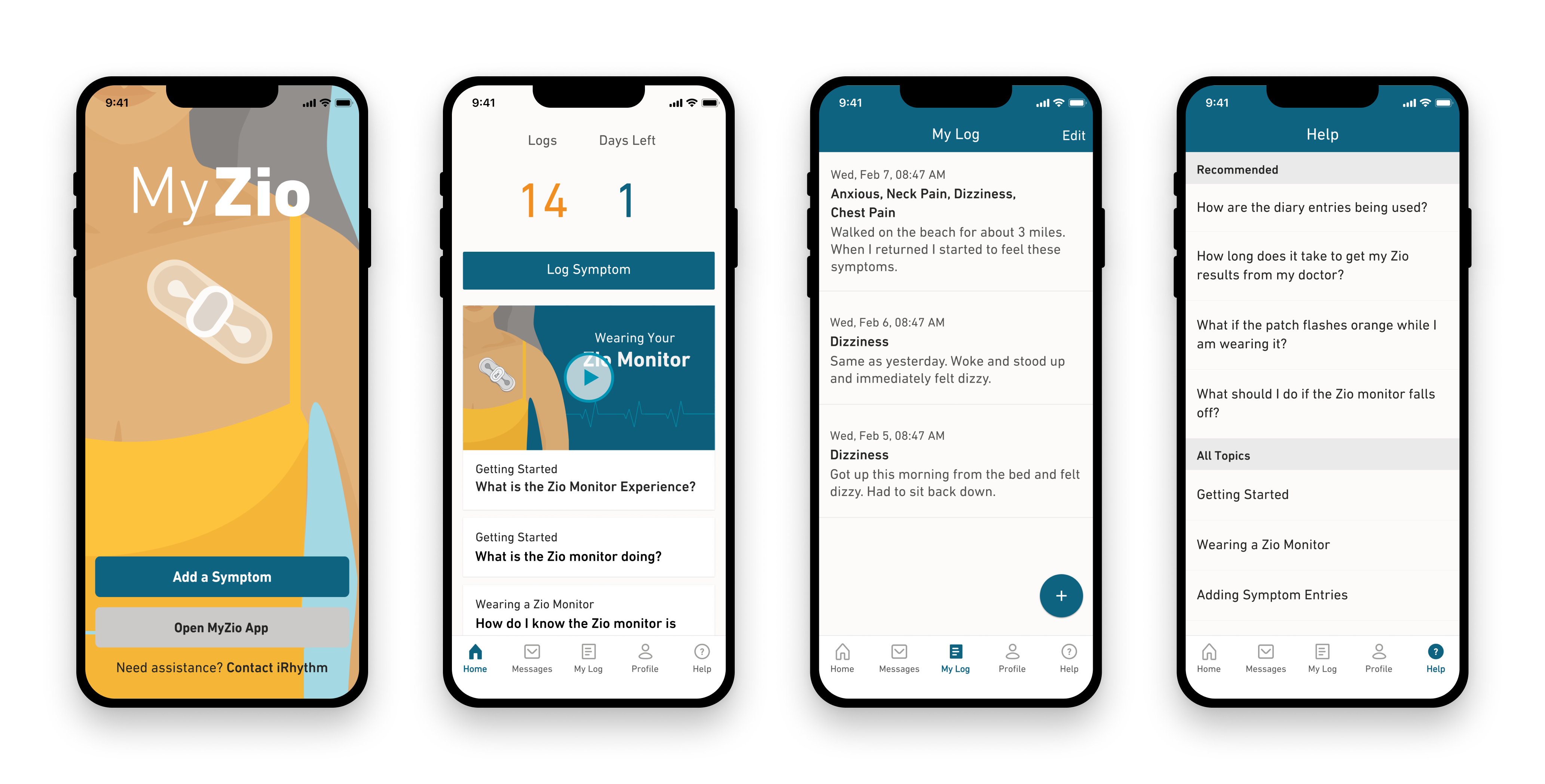

Before
The original MyZio app (v1.5) — a clinical interface that prioritized data density over patient usability.
After

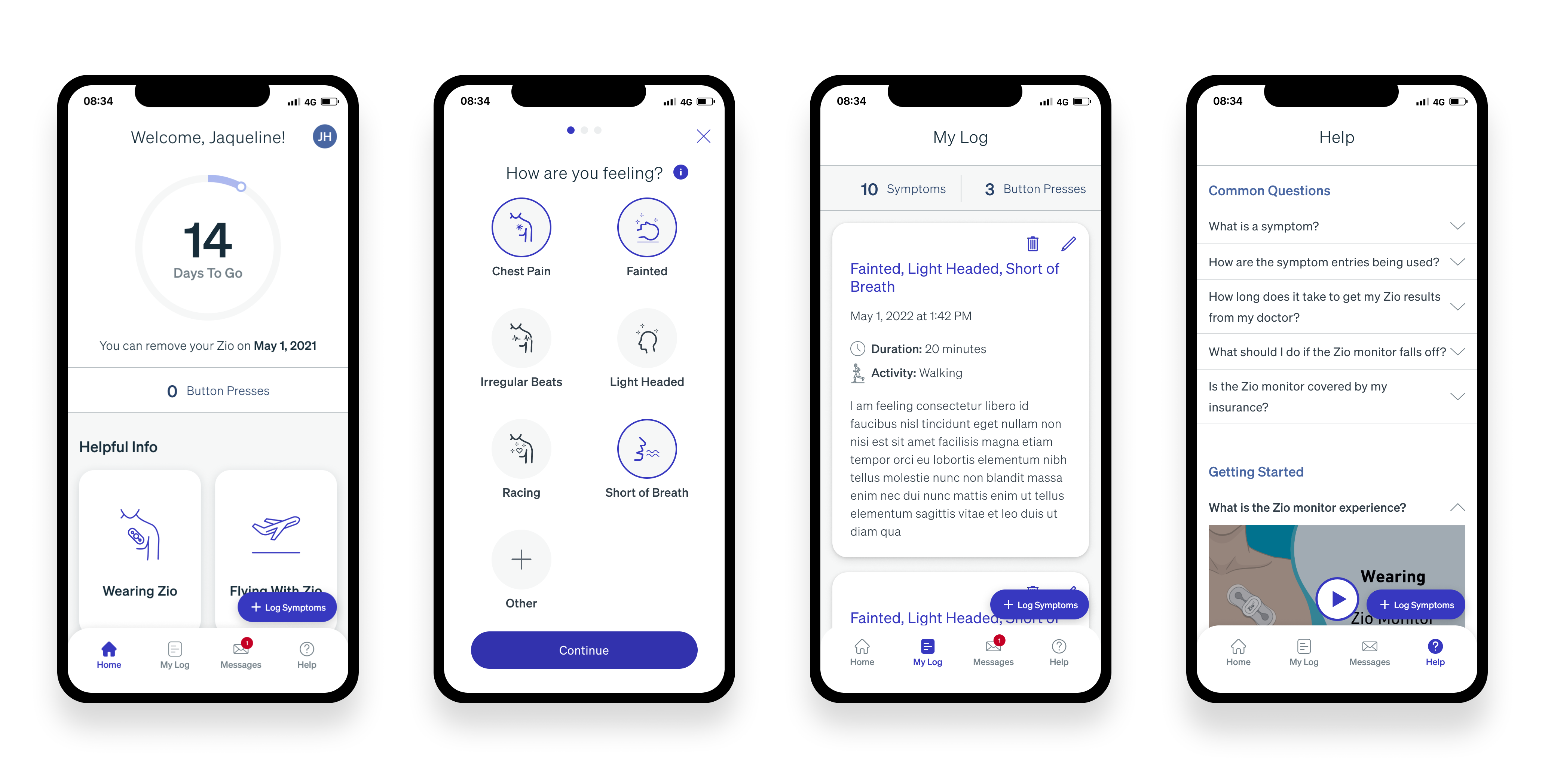

Final designs across the MyZio app's core patient touchpoints.
User Research
Research Insights
Partnering with Researchers, Product Managers, and Engineers, we identified critical pain points through usability studies and customer care analysis:
Symptom Logging Issues
- Confusing dual-action process (button press + app entry)
- 7-step flow with too many required fields caused high abandonment
- Patients forgot to complete both steps or skipped logging entirely
- No feedback confirmation — unclear if symptoms were logged successfully
Broader Product Issues
- Clinical design felt cold and unwelcoming
- Accessibility gaps excluded vision-impaired users (low contrast, small touch targets)
- High volume of support calls overwhelming customer care team

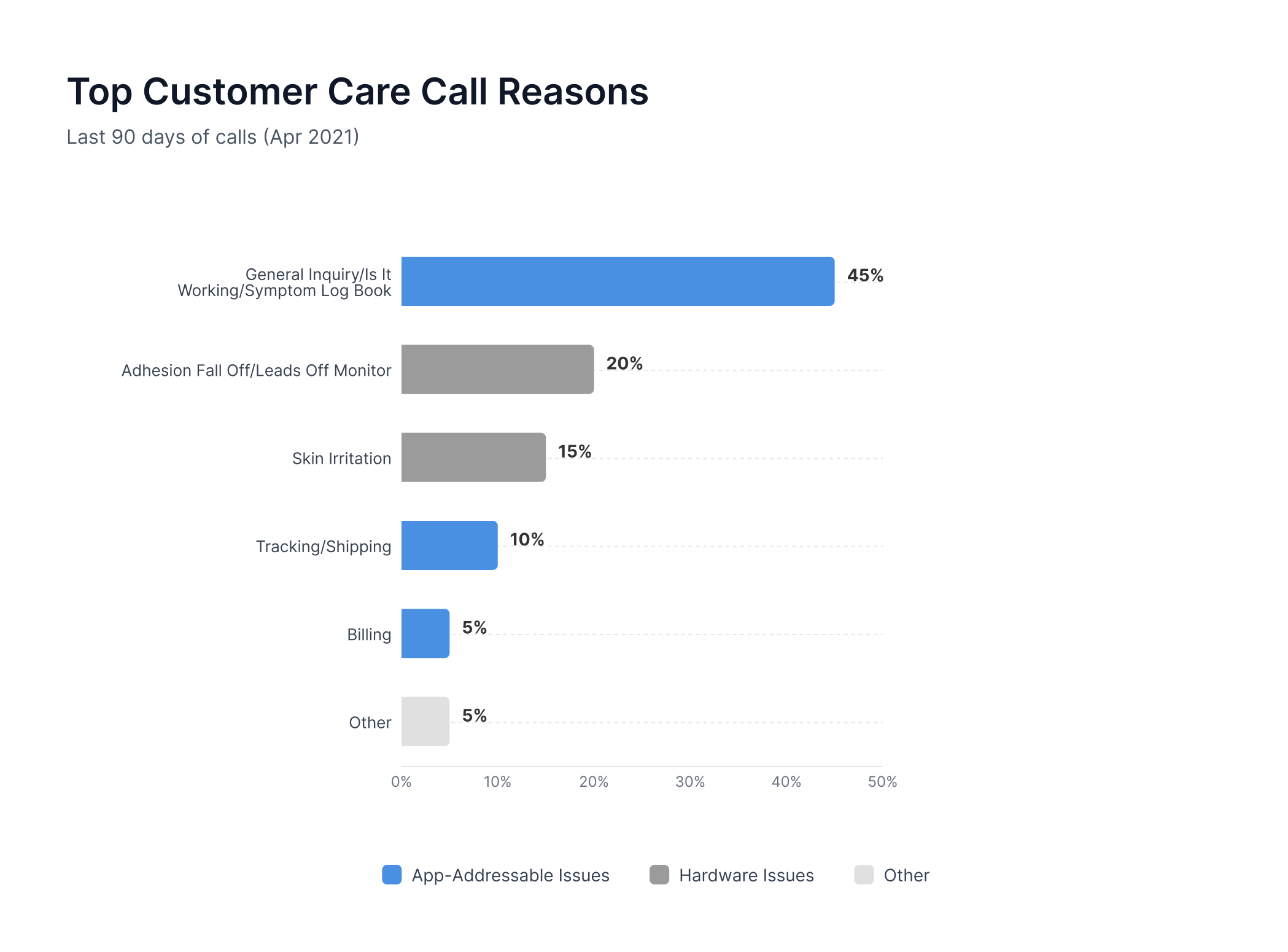

High customer care call volume driven by confusing symptom logging and device setup flows.
My Role & Approach
My Ownership
I led three high-impact areas:
- Symptom logging — highest diagnostic impact, simplified the flow from 7 steps down to 4 to stop patients from dropping off mid-task
- Profile & Settings — monitor management and patient data
- Help & Education — reducing support burden and ensuring consistency between web and mobile experience
Championing Accessibility
Here's the thing: Accessibility got deprioritized after some leadership changes early on, but I believed it was critical to our users so I ran my own accessibility audits throughout the project, made sure our text contrast and readability were solid, and kept advocating internally until we secured buy-in (and budget) for a formal accessibility vendor to take it even further.
Cross-Functional Alignment
I also spent a lot of time aligning with cross-functional partners such as Product Managers, Engineers, Legal, Regulatory, and Marketing to make sure we could deliver a fresh, rebrand-aligned experience without getting stuck in compliance or roadmap issues.
The Solution
Visual Design
Implemented company-wide brand refresh with lighter, accessible colors and modern typography — shifting from clinical to patient-friendly while meeting WCAG 2.1 AA standards.
My Log
The symptom logging and editing flow is redesigned to be faster, cleaner, and more accessible — reducing 7 steps to 4 when adding a symptom and replacing the cumbersome multi-screen editing process with a streamlined, guided flow.
Adding Symptoms (Overview)
The redesigned symptom logging flow — reduced from 7 steps to 4.

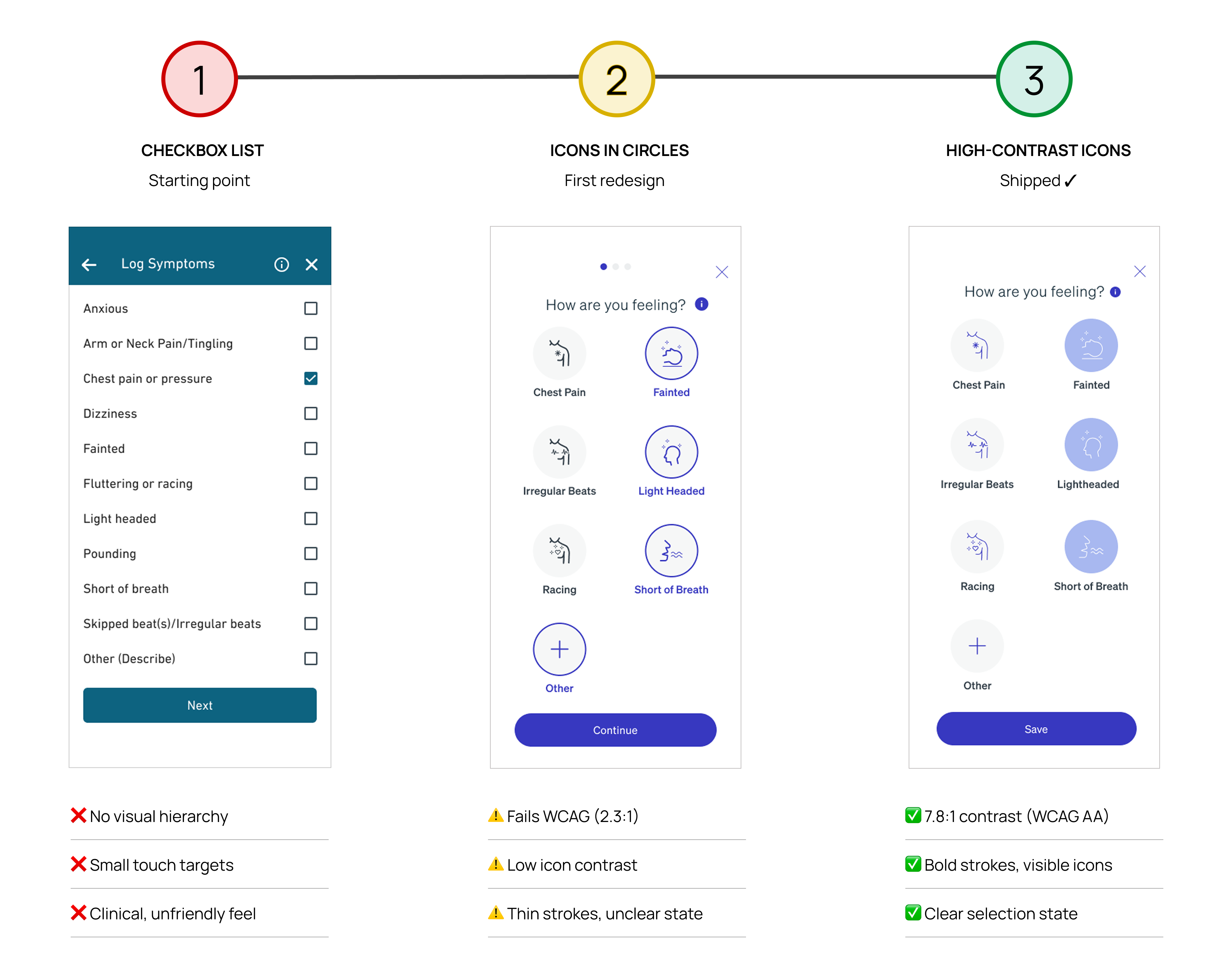

Adding Symptoms (Deep Dive)
Detailed view of the symptom log iterations.
View Symptom Log Prototype ↗Editing Symptoms (Overview)
The streamlined editing flow — a unified journey replacing the fragmented multi-screen experience.

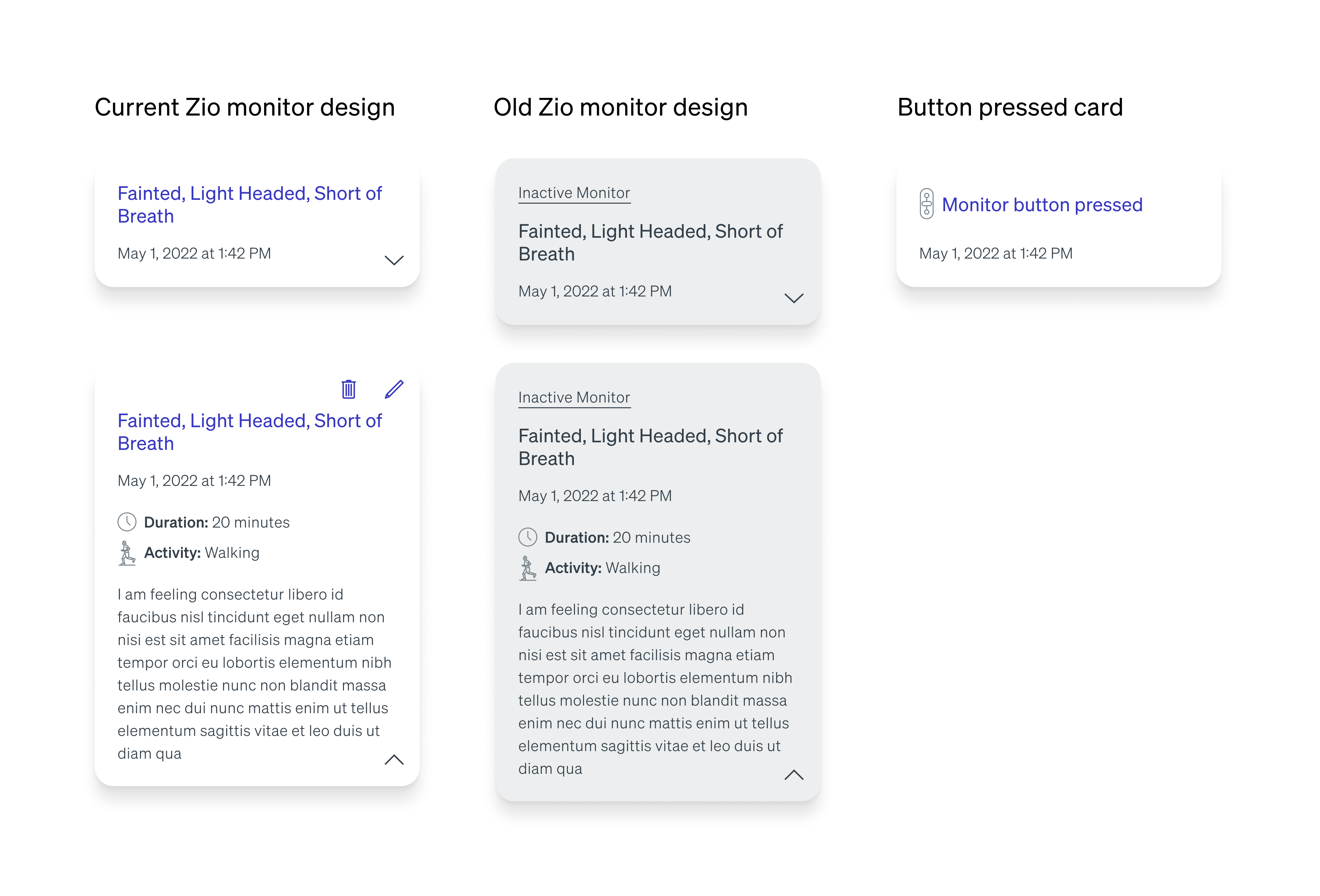

Symptom Card Designs (New Feature)
Designed three card states to communicate monitor status and data type at a glance.
Three card states: collapsed default, expanded detail, and inactive monitor indicator.
Key Changes
Profile & Settings
Simplified flows by grouping related functions for easier scanning, reimagined an intuitive flow for adding a new monitor and created a new pathway for viewing current and previous devices.

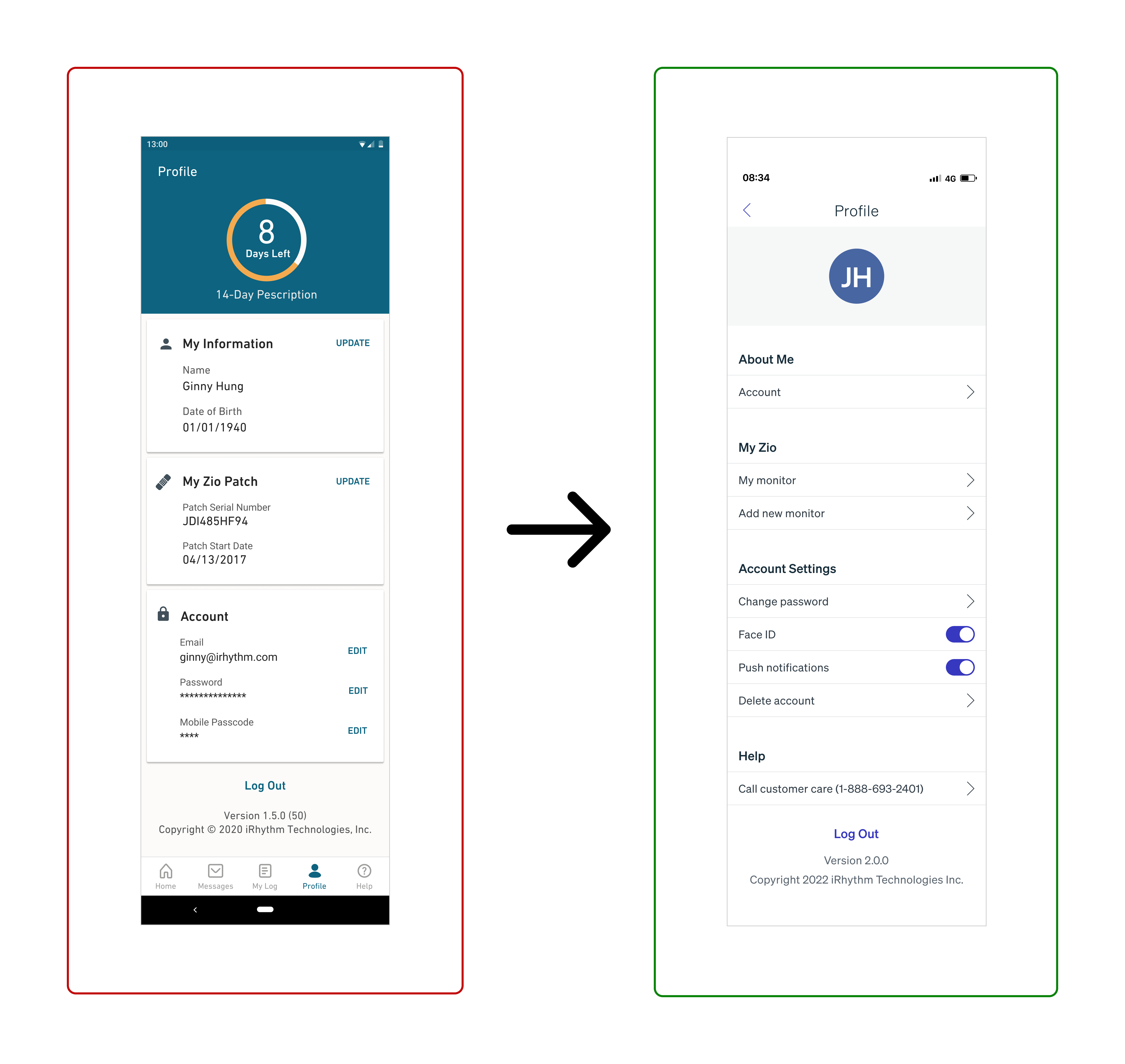

Profile & Settings (Overview)
Reorganized into 4 clear sections — About Me, My Zio, Account, and Help — for improved scannability.
Key Changes
Register New Device (Overview)
Simplified 3-step registration with barcode scanning, eliminating error-prone manual serial number entry.
Key Changes
Help & Education — Cross-Platform Design
Redesigned to be scannable and action-oriented, reducing customer support calls by making answers easier to find.

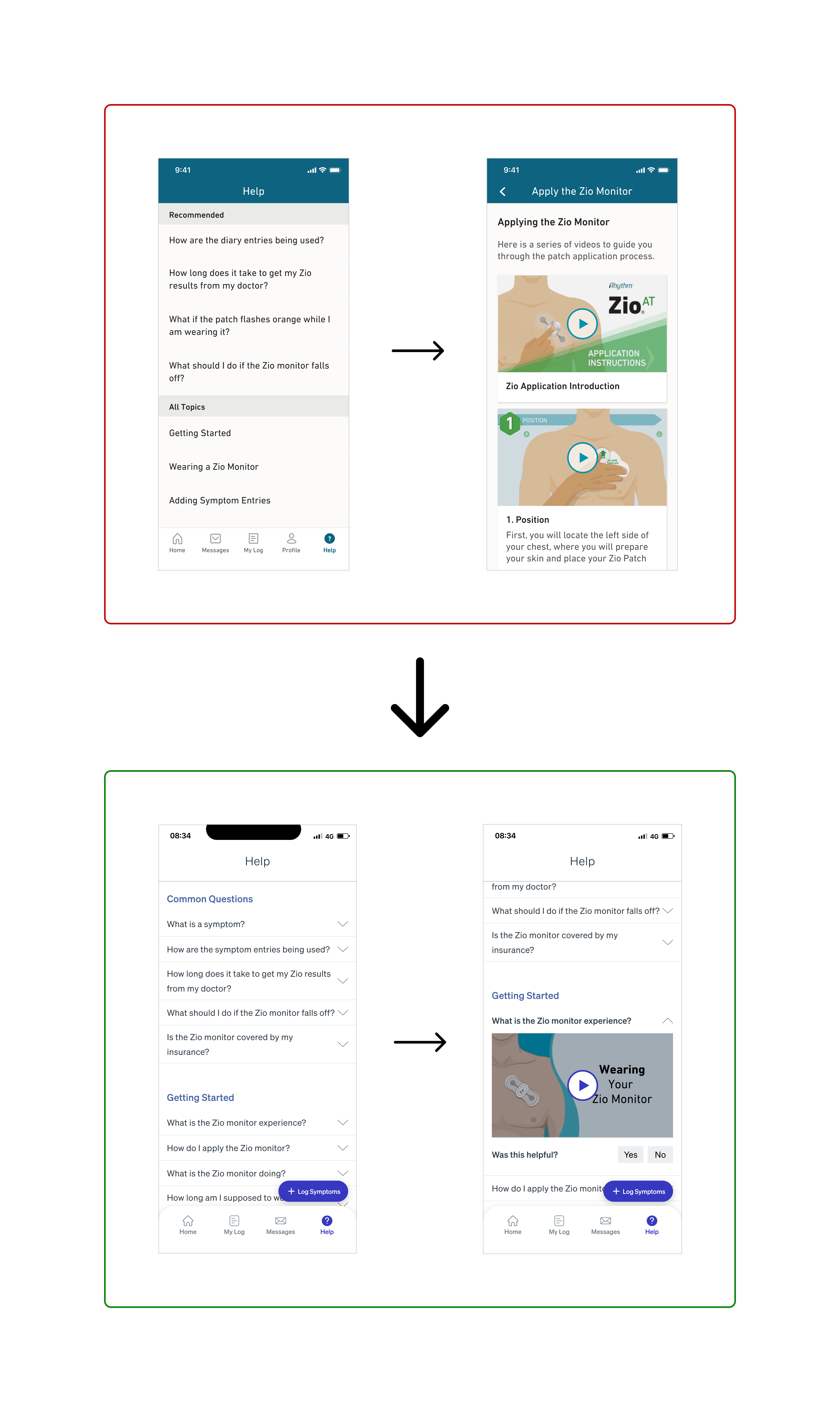

Mobile Experience (Overview)
Redesigned mobile help experience with accordion-style FAQs — answers expand inline without leaving the page.
Web Experience (Overview)
Web counterpart using the same accordion pattern — consistent experience across platforms.
Key Changes
Cross-Platform Collaboration: Collaborated with Marketing Engineering to implement consistent accordion pattern across mobile app and iRhythm.com.
Future Enhancement: Advocated for search functionality in mobile app to improve accessibility (reducing scroll time for vision-impaired users) but it was scoped for future release due to roadmap constraints.
Trade-offs
7 Steps to 4
Less friction, faster completion, lower abandonment — especially critical for patients logging mid-symptom.
- More decisions per screen can overwhelm some users
- Losing the review screen removes an error-catching moment before saving
- Fewer steps can feel less thorough to patients who equate length with care
Icon Tiles vs. Checkbox List
Faster pattern recognition, larger touch targets, and a more visually accessible experience overall.
- Fewer symptoms visible at once — critical options can fall below the fold
- Icons require interpretation — not universally understood across literacy levels
- Icon meaning can shift across cultures, creating localization risk
Reliability vs. Innovation
Shipped a stable, compliant core on time without jeopardizing the release.
- PM wanted search and personalization on the roadmap
- Engineering bandwidth was already stretched — adding scope risked the whole release
- Advanced features pushed to a future release, delaying user benefit
Card-Level Edit/Delete Icons vs. Single Edit Mode
Clear separation of two distinct intents — eliminated v1's most dangerous UX confusion between modify and remove.
- Edit and trash icons sit close together — accidental deletion is a real risk on small screens
- Delete is always visible, always one tap — no protective mode to enter first
- Bulk deletion requires tapping each card individually, losing efficiency for power users
Reflection
Designing for patients under stress taught me that less is almost always more. Restraint — in interactions, in information density — directly improved data quality and compliance more than any added feature would have.
Joining mid-project was a real constraint. Foundational research was already done, so I focused energy on iterative validation, especially in the symptom logging flow. I'd do more of that earlier next time — lightweight, frequent testing keeps assumptions honest as complexity compounds.
The accessibility advocacy was hard-won. Pushing for contrast improvements and readable typography through deprioritization cycles ultimately led to executive investment in WCAG compliance. That experience taught me how to build the case for invisible-but-critical quality standards.
This project set the template for how I work on complex, regulated products: find the highest-stakes moments, design for fatigue and distraction, and defend the tradeoffs that serve users long-term.
